Premium Woods.  Broad Styles.  Custom Options

Corona Millworks Drawer Boxes are available in a wide range of materials and construction options.  Each drawer box is hand crafted to your exact specifications.  Our friendly customer service representatives can provide complete information on all construction and material options including solid wood, plywood, availability, and pricing.

Our goal is to provide you with high-quality custom boxes on time and on budget.

Drawer Box Construction Methods

Construction Options to Fit Any Style or Budget

Corona Millworks offers a wide range of construction materials and assembly options for our drawer boxes. No matter the material or construction option you choose, all of our drawer boxes are designed to last and they are manufactured to the highest build standards.

Dovetail Construction

Feature a series of pins cut to extend from the end of one board to interlock with a series of tails cut into the end of another board. Once glued, a wooden dovetail joint requires no mechanical fasteners.

dovetailbox

Doweled Construction

Doweled construction offers good quality at a very affordable price. Another benefit is that doweled drawer boxes can be flat-packed for easy shipping and on-site assembly.

dowelbox

Drawer Box Side Options

Angled Sides

Standard Sides

Scalloped Sides

Available Drawer Box Materials

High-Quality Materials & Affordable Prices

Corona Millworks strives to make a wide variety of high-quality materials available to our customers. Offering different material options allows our customers the ability to design cabinets and drawer boxes that fit the style they need, on a budget they can afford.

Side Materials

Pre-Finished Plywood

  • 1/2″ 9-Ply Baltic Birch
  • 5/8″ 11-Ply Baltic Birch
  • 1/2″ Multi-Ply Maple
  • 5/8″ Multi-Ply Maple

Unfinished Plywood

  • 1/2″ 9-Ply Baltic Birch
  • 5/8″ 11-Ply Baltic Birch
  • 1/2″ Multi-Ply Maple

Solid Wood (Finishing After Assembly Available)

  • 1/2″ or 5/8″ Alder
  • 1/2″ or 5/8″ Aspen
  • 1/2″ or 5/8″ Beech
  • 1/2″ or 5/8″ Cherry
  • 1/2″ or 5/8″ Maple (Select White)
  • 1/2″ or 5/8″ Maple (Soft)
  • 1/2″ or 5/8″ Oak (Red)

Melamine (Available in Dowel Construction Only)

  • 1/2″ Almond
  • 1/2″ Black
  • 1/2″ Fog Gray
  • 1/2″ Maple
  • 1/2″ or 5/8″ White
  • 1/2″ White (with MDF core)

Bottom Materials

Pre-Finished Plywood

  • 1/4″ or 1/2″ Baltic Birch
  • 1/4″ or 1/2″ Maple

Unfinished Plywood

  • 1/4″ or 1/2″ Alder
  • 1/4″ or 1/2″ Beech
  • 1/4″ or 1/2″ Birch
  • 1/4″ or 1/2″ Cherry
  • 1/4″ or 1/2″ Maple
  • 1/4″ or 1/2″ Oak (Red)

Melamine

  • 1/4″ or 1/2″ Almond
  • 1/4″ or 1/2″ Black
  • 1/4″ or 1/2″ Fog Gray
  • 1/4″ or 1/2″ Maple
  • 1/4″ or 1/2″ White

Top Edge Types

  • Bullnose
  • Square
  • Square Flush

Top Edge Finishes

  • Clear Foil
  • PVC Tape
  • Wood Tape

Notch, Drill, & Clip Information

Quick & Easy Drawer Box Installation

Corona Millworks can construct drawer boxes that are notched, drilled, and clipped for the installation of undermount drawer slides. We carry adjustable and standard clips from Hettich, Blum, Salice, and Grass.  Matching slides are also available (including soft close options).

Features

  • Clips Available From: Blum, CMW, Grass, Hettich, & Salice
  • Wide Range of Undermount Slides Available
  • Concealed Undermount
  • Easy Box Installation and Removal
  • Increased Drawer Strength and Weight Capacity

Undermount Drawer Slide Specifications

Outside Drawer Width = Drawer Opening (-) Subtraction Factor

To calculate Outside Drawer Width, first determine Drawer Opening size and Drawer Side Thickness. Use Thickness to look-up Subtraction Factor on chart below. Then simply subtract Subtraction Factor from Drawer Opening size.

Side Thickness:

5/8″ (16mm)

19/32″ (15mm)

9/16″ (14mm)

1/2″ (13mm)

15/32″ (12mm)

Subtraction Factor:

3/8″ (10mm)

15/32″ (12mm)

9/16″ (14mm)

5/8″ (16mm)

23/32″ (18mm)

For Example: If you have an 18″ Drawer Opening with a Side Thickness of 5/8″, the Subtraction Factor is 3/8″. So in this case to calculate the outside drawer width the formula is: 18″ – 3/8″ = 17-5/8″.

Corona Millworks Tolerances are as follows: Width 1/32″ (+/-), Depth 1/16″ (+/-), and Height 1/16″ (+/-).

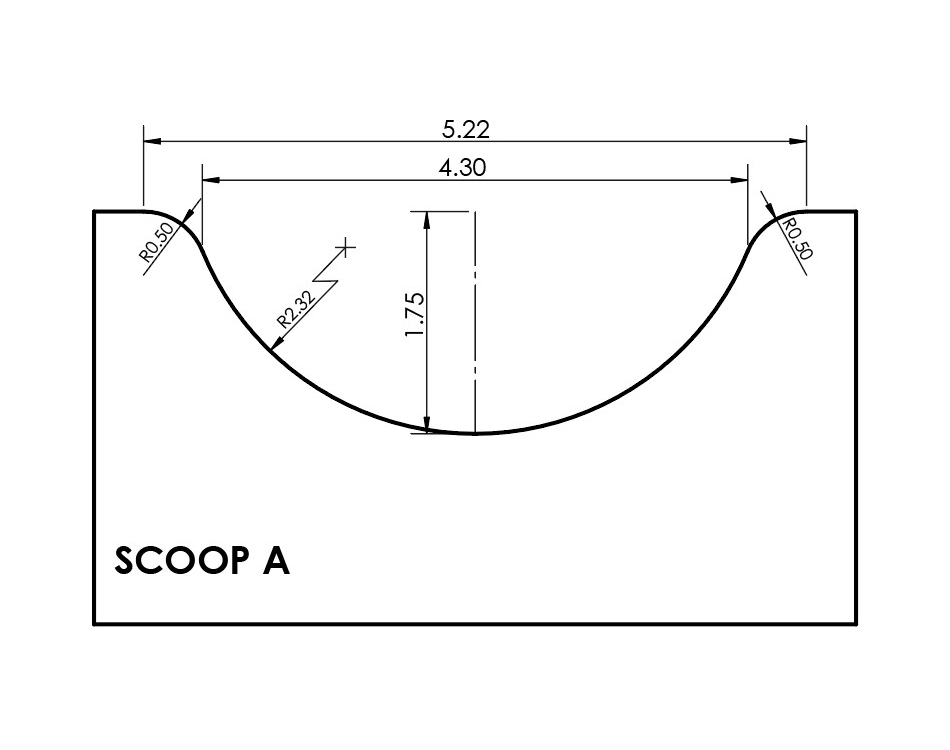

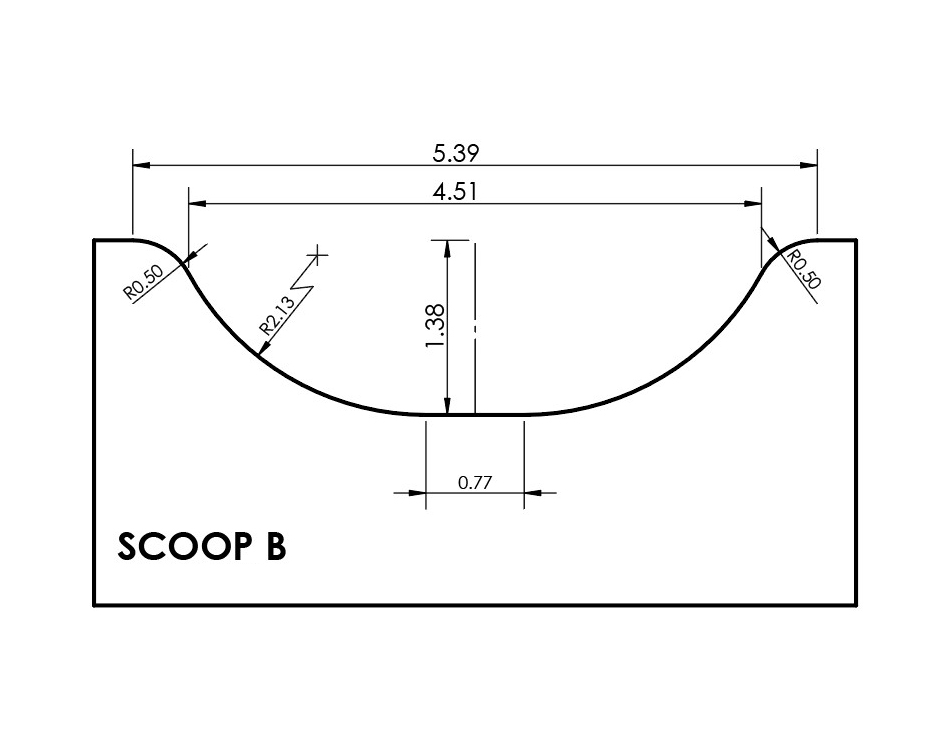

Available Drawer Scoop Options

Convenient & Functional

Most drawer box manufactures only offer 2 different drawer front scoop styles. Corona Millworks believes that’s not enough, so we offer 6 different style options for you to choose from. Scoops act as pullouts for drawer boxes which allow for easy access.

Scoops are centered on the front of the drawer box.

Scoop #3

Scoop #4

Scoop #5

Scoop #6

Custom Engraved Laser Logos

Sign Your Work

Give the lasting impression of a completely custom drawer box by leaving a signature of your craftsmanship with your company’s logo. Drawer boxes can be uniquely created with different material options. For the best results Corona Millworks recommends laser engraving on alder, cherry, maple, red birch & walnut wood types.

Logo Requirements – For the best results please submit a BLACK & WHITE version of your logo in PDF format to your customer service rep. There is a one-time setup fee per logo used.

Lipped Drawer Boxes

STYLE #1 – DOVETAIL

Solid Box with Solid Face Lip

3/4″ Thick face board with 3/8″ lip.  Add 1/4″ to depth measurement for undermount slides.

STYLE #2 – DOVETAIL

Plywood Box with Solid Face Lip

3/4″ Thick face board with 3/8″ lip.  Add 1/4″ to depth measurement for undermount slides.

STYLE #3 – DOWELED

Plywood Box with Solid Face Lip

3/4″ Thick face board with 3/8″ lip.  Add 1/4″ to depth measurement for undermount slides.

STYLE #4 – DOWELED

Solid Box with Plywood Face Lip

1/2″ Thick face board with 3/8″ lip.

Storage Boxes & Insert Options

Custom Wood Boxes & Inserts

From simple spice and silverware inserts to innovative corner boxes and wine storage options, Corona Millworks offers a wide range of drawer box and cabinet inserts to help make the most of your storage space.

File Organization, Without the File Cabinet

Keep all your paperwork and important files tucked away nice and neat in a Corona Millworks file drawer box. Our file boxes are available with file folder rails mounted to hang file folders parallel to the length, or width of the box.

Features

  • Available in Dovetail or Doweled Construction
  • File Folder Bars Are Optional & Must Be Specified
  • Slot For Folder Bars Are 1/8″ Wide and 1″ High
  • Both Options Include Letter & Legal File Slots
  • File Slots Generally Located 3/8″ from Sides
  • Minimum Inside Height: 9-3/8″
  • Minimum Inside Width (Letter): 13-1/4″
  • Minimum Inside Width (Legal): 16-1/4″

Standard Files

The slots for the file bars are placed on the front & back of the drawer box making them run the depth of the drawer box.

Lateral Files

The slots for the file bars are placed on the sides of the drawer box making them run the width of the drawer box.

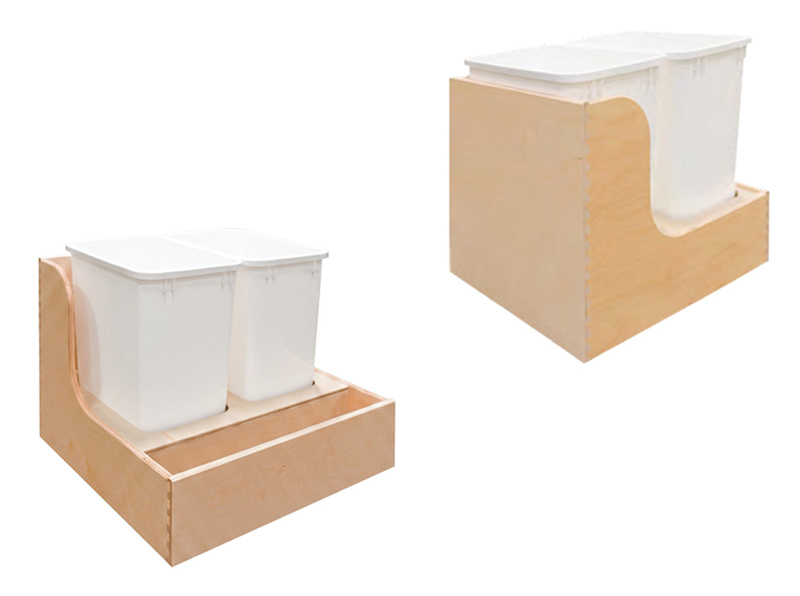

Neat & Discrete Trash Bin Storage

Pull Out Trash Bins from Corona Millworks keep garbage out of sight and save floor space. The crafted drawer mounted on the inside of the cabinet allows the trash bins to slide out when the door is opened for easy operation. Multiple trash bins allow for sorting of trash and recyclables.

Features

  • Beautiful Dovetail Construction
  • Pre-Finished 9 Ply Birch
  • Pre-Notched and Drilled
  • Easy to Install
  • Trash Cans Included
  • Includes Blum Soft Close Undermounts and Clips
  • Single & Double Bin Styles Available
  • Custom Sizes Are Available
  • 100lbs Weight Capacity

35 Quart Single Bin (Part# CM3500)

  • Depth: 18″
  • Height: 18″
  • Width: 12-7/8″
  • Fits: 13-1/2″ Opening

For 15″ Wide Euro Cabinet

70 Quart Double Bin (Part# CM7000)

  • Depth: 21″
  • Height: 18″
  • Width: 15-7/8″
  • Fits: 16-1/2″ Opening

For 18″ Wide Euro Cabinet

Organize Utensils & Silverware

Keeping your silverware and utensils separated is easy with Corona Millworks drawer box inserts. We offer several different pre-configured options, thus allowing you to create the perfect storage space for all your eating utensils.

Features

  • Available in Nailed Construction
  • 4 Silverware Insert Options
  • 3 Utensil Insert Options
  • Available as Removable or Fixed
  • 1/2″ Thick & 1 1/2″ Tall
  • Constructed of Pre-Finished Maple

Option A

Option B

Option C

Option D

Option E

Option F

Option G

Spice Storage the Easy Way

Corona Millworks spice pull-outs and drawer inserts provide a great way to organize your kitchen or bathroom. In the kitchen the spice pull-out is great for storing canned goods, while the spice insert provides a clutter free way to store your spices. In the bathroom you can store beauty products and personal accessories in a convenient, easy-to-find way.

Spice Pull Out Features

  • Available in Dovetail Construction
  • Can Be Ordered in Any Material
  • Available Unfinished or Prefinished
  • Maximum Height 21″
  • Shelf Bottoms Recessed by 1/2″
  • Top/Bottom Shelf Height 3″
  • Middle Shelf Height 1 1/2″
  • Middle Shelf Adjustable / Removable
  • Custom Sizes Available
  • Sidemount or Undermount Installation

Spice Insert Features

  • Available in Nailed Construction
  • Can Be Ordered in Any Material
  • 1/2″ Fronts with 1/4″ Bottoms
  • Can Be Purchased Pre-Installed
  • Available Up To 48″
  • Quantity of Inserts Depends on Drawer Depth
  • Suggested Height is 3 1/2″
  • Custom Sizes Available

Perfect for Kitchens & Baths

Most of us store our cleaning supplies under our sinks, but we often don’t have a good way to organize them. To help you win the war on clutter, Corona Millworks offers under sink storage boxes.

Features

  • Available in Dovetail Construction
  • Available in 9-Ply Birch or Maple Wood
  • Top & Bottom Shelves Have 3″ Height
  • Standard Height is 12″
  • Shelf Bottoms Recessed by 1/2″
  • Custom Sizes Available
  • Sidemount or Undermount Installation
  • Great For Kitchens & Baths

Corona Millworks is a wholesale cabinet supplier and we do not sell to homeowners direct. If you are a homeowner and would like to purchase from us, then please have your cabinet contractor contact us on your behalf.
